Description
PXI-4065 6½ -bit 300 V digital multimeter (DMM)
Product Description
Product Overview:

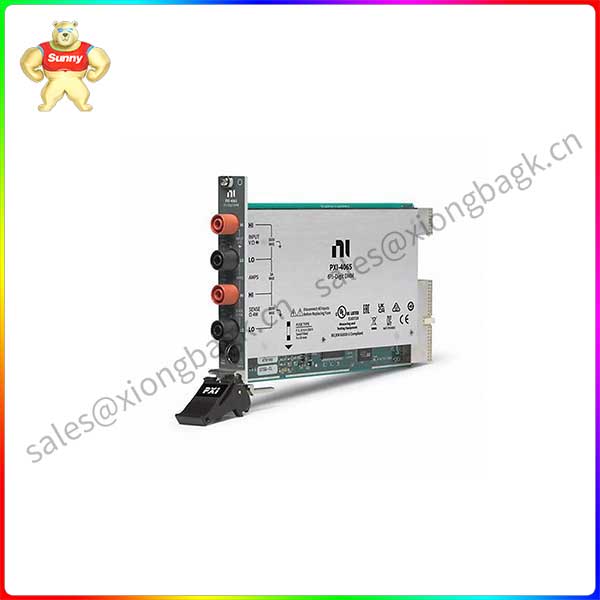

The NI PXI-4065 is a 6½ -bit 300 V digital multimeter (DMM) manufactured by National Instruments (NI). It is suitable for performing AC/DC voltage, AC/DC current and 2-wire or 4-wire resistance measurements as well as diode testing. This multimeter is ideal for Oems, teaching LABS, or other cost-conscious test and measurement applications.
Functional features:
Provides basic 6½ bit DMM measurement functions, including AC/DC voltage measurement, AC/DC current measurement, 2 – or 4-wire resistance measurement, and diode testing.
Support high voltage isolation to ensure measurement safety.
Supports the creation of high channel data acquisition systems with NI PXI switches.
PXI-4065
Product parameter
Resolution: 6½ bits.
Voltage measurement range: ±300 VDC/Vrms.
Current measurement range: up to 3A.
Resistance measurement range: 22Ω to 100 MΩ.
Sampling rate: up to 100 kS/s.
Interface: PXI bus.
Accuracy: Voltage measurement accuracy is ±0.015% full scale, current measurement accuracy is ±0.025% full scale, resistance measurement accuracy is ±0.02% full scale.
Application field
It is widely used in the fields of automated test system, RF test and data acquisition.
It is suitable for testing and measurement in electronic testing, sensor measurement, data acquisition and product development.
Physical characteristics:
Dimensions: 3U, single-width PXI/cPXI module, 21.6cm × 2.0cm × 13.0cm (8.5in. × 0.8in. × 5.1in.).
Weight: 351.5g (12.4 oz).
Environment and Safety:
Operating environment: Ambient temperature range 0 to 55 °C, relative humidity range 10% to 90%, non-condensing.
Electromagnetic compatibility: Meets EMC standards such as EN 61326-1, EN 55011, EN 55022 and EN 55024.
CE compliance: Compliance with the 2014/35/EU Low Voltage Directive and 2014/30/EU Electromagnetic Compatibility Directive.
