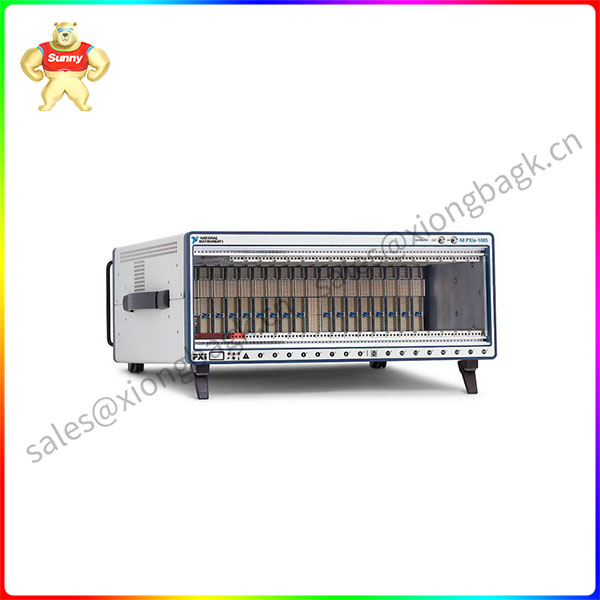

PXIe-1085 16 hybrid slots and 1 PXI Express system timing slot
Product Description
The PXIe-1085 is a high-performance 3U PXI Express chassis from National Instruments, designed to meet the needs of a wide range of high-performance test and measurement applications. Here are some of the key features and parameters of the product:
High bandwidth backplane: The PXIe-1085 chassis has a full hybrid backplane that provides high bandwidth performance, with some models having system bandwidth up to 24 GB/s.
Hybrid connectors: Each peripheral slot is equipped with a hybrid connector type to provide maximum flexibility in the placement of instrument modules.
Supports a variety of modules: compatible with PXI, PXI Express, CompactPCI and CompactPCI Express modules.
System timing slot: Provides 16 hybrid slots and one PXI Express system timing slot.
High performance: Up to 4 GB/s of dedicated bandwidth per slot is provided, and the overall system bandwidth can reach 12 GB/s or 24 GB/s.
Temperature range: Operating in the temperature range of 0-55°C, providing a total power of 925W without derating.
Built-in reference clock: A built-in 10 MHz and 100 MHz reference clock provides synchronization for the PXI/PXI Express and PXI Express modules, respectively.
Remote control: Features remote power disable control and variable speed fan controller for optimized cooling and acoustic performance.
Monitoring function: Monitors the power supply, temperature, and fan status, providing high reliability.
Cooling capacity: 38.25W of cooling capacity per slot to meet increased PXIe cooling demand.
Operating sound: Operating at 0 to 30°C, the sound level is 51.2 dBA.
Software compatibility: Software running PXI Platform Services 3.0 or later can be configured using the Measurement & Automation Explorer (MAX) tool.
The PXIe-1085 chassis is designed for applications that require high data processing power and high I/O throughput, such as automated testing, data acquisition, RF testing and other high-performance test and measurement fields. If you need to take full advantage of the PXIe-1085’s performance, it is recommended to use it with the NI PXIe-8880 embedded controller
PXIE-1085
Product parameter
Number of slots: 16 hybrid slots and 1 PXI Express system timing slot.
Maximum system bandwidth: There are two versions, one with a maximum bandwidth of 12 GB/s and the other with 24 GB/s.
Bandwidth per slot: Up to 4 GB/s dedicated bandwidth.
Compatibility: Compatible with PXI, PXI Express, CompactPCI, and CompactPCI Express modules.
Power Supply: 925W of total power over the entire temperature range (0-55°C) with no derating.
Cooling capacity: 38.25W cooling capacity per slot.
Built-in reference clock: Built-in 10 MHz reference clock for PXI/PXI Express slot and built-in 100 MHz reference clock for PXI Express slot, both with ±25 ppm stability.
Operating temperature range: 0°C to 55°C.
Dimensions: Height 6.97 inches, width 18.30 inches, depth 19.38 inches (approximately 177 mm x 460 mm x 495 mm).
Weight: About 40.3 pounds (about 18.3 kilograms).
Remote control: With remote power disable control and variable speed fan controller.
Monitoring function: Monitors the power supply, temperature, and fan status.
Sound level: At 0 to 30°C, the sound level is 51.2 dBA.
Software: Run PXI Platform Services 3.0 or later software that can be configured using the Measurement & Automation Explorer (MAX) tool.
Other features: Has 2 SMA connectors, supports hot-swappable cooling fans, and the power supply can be removed separately.
Application field
High Performance Test and measurement: The chassis is equipped with a high bandwidth full hybrid backplane to meet the needs of high performance test and measurement applications.
Automated test: Suitable for automated test systems, providing up to 8 GB/s dedicated bandwidth per slot and 24 GB/s system bandwidth.
Data acquisition: It is suitable for high-speed data acquisition system and can handle high-speed reading and writing of large amounts of data.
Rf testing: Suitable for RF application testing, providing the power and cooling capabilities required for high performance instruments.
Digital protocol analysis: Suitable for high-speed digital protocol analysis, using its high bandwidth characteristics for data transmission and processing.
Structural and sound testing: For structural testing and sound testing, support for high channel count DAQ systems.
Embedded Computing: Can be used in combination with NI’s high-performance embedded controllers such as the PXIe-8880 to provide the processing power needed for computation-intensive test and measurement applications.
