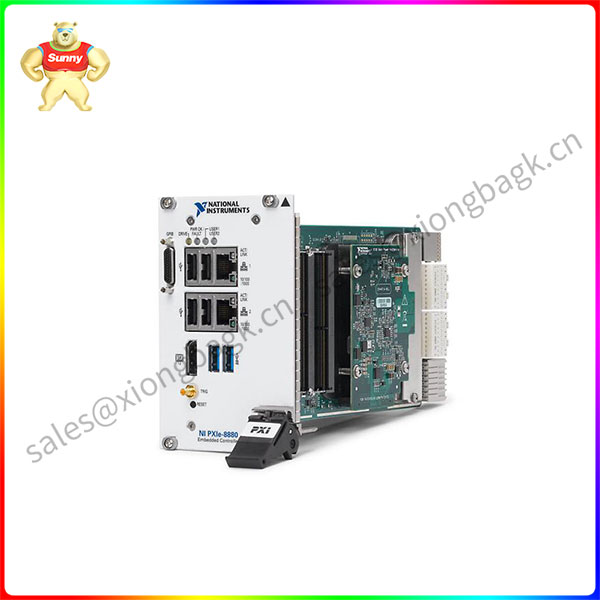

PXIe-8880 Intel Xeon octa core embedded controller
Product Description
The PXIe-8880 is an Intel Xeon octa core embedded controller for high-performance PXI Express systems from National Instruments, designed for processor-intensive applications such as radio frequency (RF), modular instrumentation and data acquisition. This controller has the following features and parameters:
Processor: Eight-core Intel Xeon E5-2618L v3 processor, the main frequency is 2.3 GHz.
Memory: Comes standard with 8 GB RAM (1 x 8 GB DIMM) and supports three-channel 1866 MHz DDR4 RAM.
System bandwidth: up to 24 GB/ s, slot bandwidth is 8 GB/ s.
Storage: Built-in 1.8-inch SATA solid state drive (SSD) with 240 GB or larger, supports Native Command Queuing and transfer rates of up to 500 MB/s.
Ethernet ports: Contains two 10/100/1000BASE-TX (Gigabit) Ethernet ports.
USB ports: Includes two USB 3.0 ports and four USB 2.0 ports.
Physical size: Four-wide 3U PXI Express module weighing about 1.5 kg (3.4 lb).
Compatibility: Fully compatible with PXI Express specification 1.0.
Environment: The operating temperature ranges from 0 °C to 50 °C, and the storage temperature ranges from -40 °C to 71 °C.
Safety: Compliant with IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1 and other safety standards.
Electromagnetic compatibility: complies with relevant electromagnetic compatibility standards.
In addition, the PXIe-8880 has the following front-end interfaces:
System reset button.
Two status indicators, showing power and fault status.
Two user-defined two-color (green/yellow) LED indicators can be used to meet specific application requirements.
The PXIe-8880 is suitable for applications that require high performance processing power, such as 5G cellular query research, semiconductor manufacturing testing, RF recording and playback, and any application with stringent test and display time requirements. The controller can run driver software such as Ni-DAQMX, NI-Visa, NI Modular Instrument and NI-Industrial Communications for EtherCAT, and is compatible with software development environments such as LabVIEW.
PXIe-8880
Product parameter
Processor: 2.3 GHz octa-core Intel Xeon E5-2618L v3 CPU.
Memory: 8 GB (1 x 8 GB DIMM) DDR4 RAM, supporting three-channel 1866 MHz.
System bandwidth: 24 GB/ s.
Slot bandwidth: 8 GB/ s.
Storage: 240 GB or larger 1.8-inch internal SATA solid state drive (SSD) with NCQ support and up to 500 MB/s transfer rate.
Network interface: 2 10/100/1000BASE-TX (Gigabit) Ethernet ports.
USB ports: 2 USB 3.0 ports and 4 USB 2.0 ports.
Physical dimensions: four wide 3U PXI Express module.
Power requirements: Typical operating current is + 3.3V (2.24A), + 5V (2.44A), + 12V (6.5A), 5 VAUX (0.19A).
Weight: Approximately 1.5 kg (3.4 lb).
Operating temperature range: 0 °C to 50 °C.
Relative humidity range: 10% to 90%, non-condensing.
Maximum altitude: 2000 m (800 mbar) at 25 °C ambient temperature with chassis fan set to high speed.
Pollution level: 2, for indoor use only.
Shock and vibration:
Operating shock: Y and Z axis 30 g peak, half sine, 11 ms pulse; X axis 20 g peak.
Random vibration: operating state 5 to 500 Hz, 0.3 grms; Non-operating 5 to 500 Hz, 2.4 grms.
Safety: Compliant with IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1 standards.
Electromagnetic compatibility: complies with relevant EMC standards.
Application field
Processor-intensive applications: The PXIe-8880’s 2.3GHz octa-core Intel Xeon E5-2618L v3 processor, coupled with three-channel 1866 MHz DDR4 memory, is ideal for processor-intensive tasks such as high-end radio frequency (RF) testing, modular instrumentation, and data acquisition applications. “For processor-intensive RF, modular instrumentation and data acquisition applications.”
High-speed data transfer: The controller supports high-speed data transfer and has two Gigabit Ethernet ports for applications that require large amounts of data transfer.
Industrial Automation and Testing: The PXIe-8880’s high processing power and rich I/O interface make it suitable for industrial automation and testing systems, especially where high performance computing and synchronous data flow are required.
Research and education: In the field of research and education, the PXIe-8880 can be used for complex experiments and research projects, providing the necessary computing and data processing capabilities.
Hybrid test system: PXIe-8880 supports the construction of a hybrid test system. With its two Ethernet ports, it can combine multiple bus technologies to realize the integration of different test platforms. “With the ability to use the second Ethernet port, you can combine multiple buses into your test systems.”
Durability and reliability: The PXIe-8880 is designed to meet stringent safety and electromagnetic compatibility standards for industrial environments that require high durability and reliability.
Easy to maintain and upgrade: The PXIe-8880 offers an easy to maintain and upgrade design that includes built-in storage and recovery images, as well as fast access to memory and hard drive diagnostics, “To improve the serviceability of the NI PXIe-8880, in-ROM diagnostics for the hard drive and memory can be quickly accessed without requiring external third-party tools.”
Video and Graphics processing: The integrated ATI Radeon E6460 graphics processing unit supports dual display output for applications requiring advanced graphics and video processing.
Peripheral device connection: Multiple USB ports are provided for easy connection of various peripheral devices, such as keyboards, mice, printers, etc.
