SCXI-1160 NI General Purpose Relay Switch Module

Description

SCXI-1160 NI General Purpose Relay Switch Module

Welcome to my shop. We are the largest supplier in China. We have a sales history of 20 years in the automation industry. There are many brands of automation products and robots around the world. Are our products comprehensive about AB, FOXBORO, Triconex, ABB Bailey, ICS TRIPLEX, Epro, GE FANUC, Honeywell QCS, Siemens Moore, Motorola, OVATION, schneider, etc. If you have other products to buy, please contact me at 18059884797 and wish us a happy cooperation.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

The NI SCXI-1160 (Part Number: 776572-60) General-Purpose Switch Module has 16 individual SPDT Form C, electromechanical, latching relays, which have extremely low on-resistance and thermal offset. This module’s relays are capable of switching, routing, and controlling medium-level signals. The SCXI 1160 Switch Module has a maximum switching rate of 50 operations per second and is completely software programmable. The switching capacity of the module is 2 A at 250 VRMS or 2 A at 30 VDC. The NI SCXI-1160 can be used with NI MIO-16 Boards; Lab-NB, Lab-PC, Lab-PC+, Lab-LC, and PC-LPM-16 boards, as well as with the DIO-24, DIO-32F, and DIO-96 boards. The device has a relay operating time of 10 ms, with an offset voltage of 3 µV.

An advantage of using the SCXI-1160 module is that more than one module can be used in one or more chassis, resulting in the capability to control and switch thousands of signals. When the SCXI 1160 is used with an SCXI chassis, the chassis can function as a controller or switch in several types of applications, such as industrial process monitoring, production testing, and laboratory testing. The device operates using the NI-SWITCH driver software which is compatible with software packages such as LabVIEW, and LabWindows/CVI.s

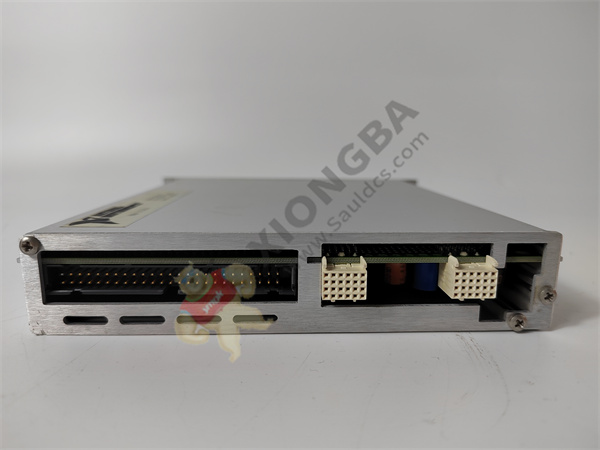

There are five jumpers on the NI SCXI-1160 Relay Switch Module. First, Jumper W1 links a pullup resistor to the SERDATOUT signal on the back signal connector. Jumpers W2, W3, and W4 designate if the SCXI-1160 is going to be linked to a DIO board or an MIO board. If the SCXI 1160 does not have anything cabled to the back signal connector, then the arrangement of these jumpers does not matter. Finally, Jumper W5 carries the SCXI bus MISO line, after buffering, to the SERDATOUT signal on the back signal connector. This Relay Switch Module does not have access to the analog backplane to safeguard the backplane from faults when high voltages are present on the relay contacts. The NI instrument has the dimensions: 1.2 x 6.8 x 8.0 in.

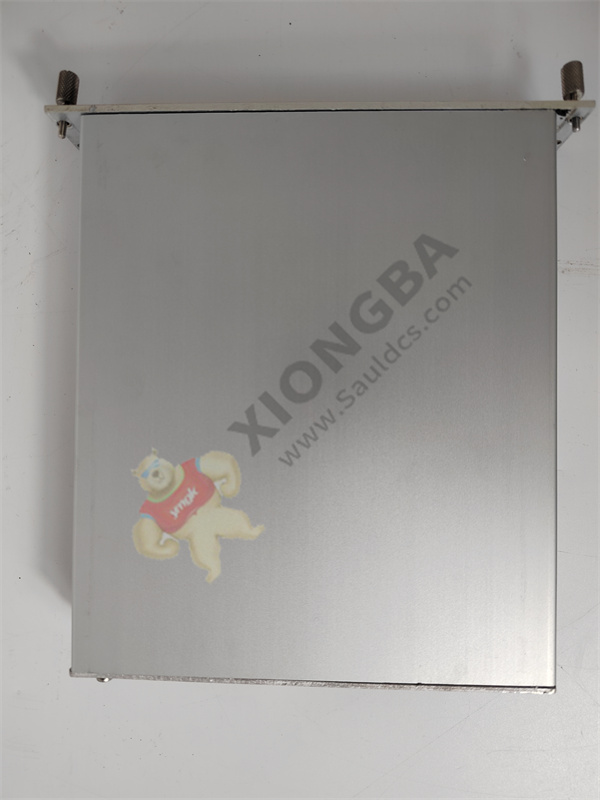

NI SCXI-1160

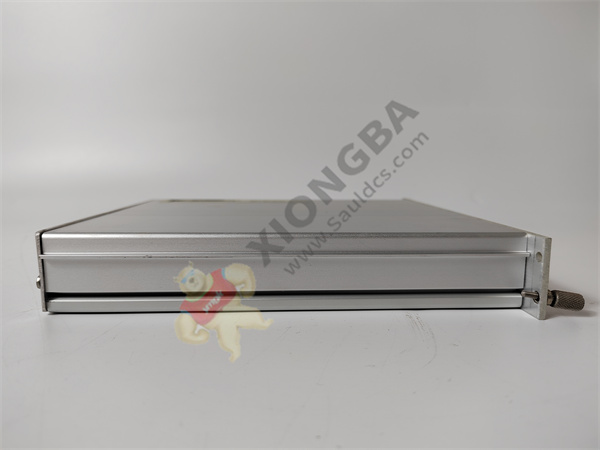

NI SCXI-1160

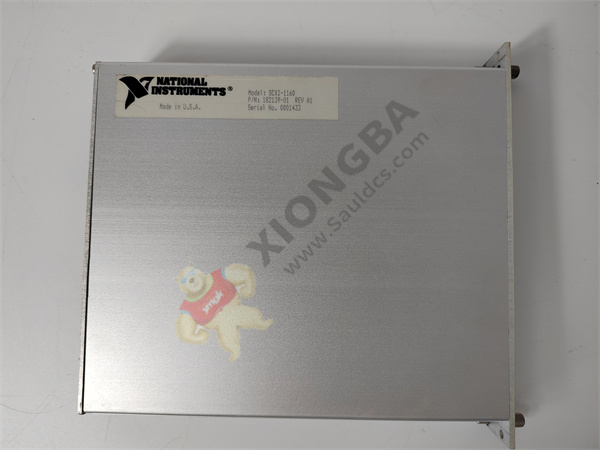

NI SCXI-1160
