15I-2-FMO Gecma Challenger Remote PC Terminals

Description

Technical Specifications for 15I-2-FMO

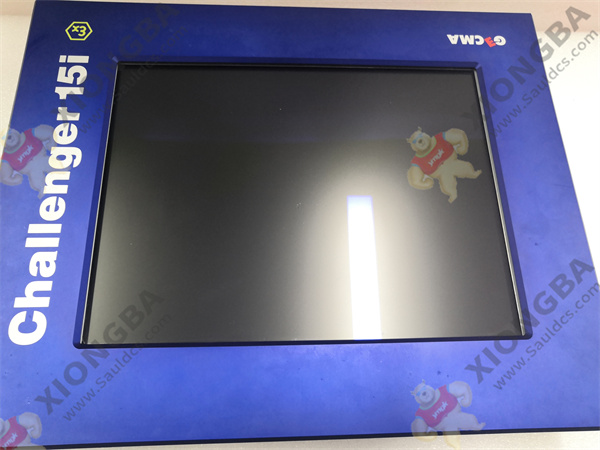

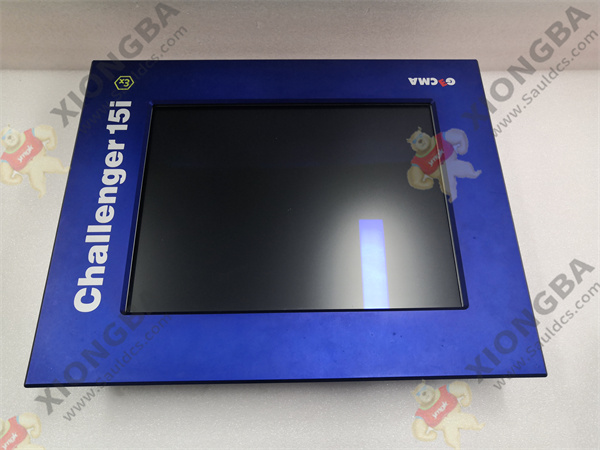

The CHALLENGER 15i-2, the CHALLENGER 18i and the CHALLENGER 22i are intrinsically safe
visualisation and operator terminals. They essentially comprise the intrinsically safe
CHALLENGER 15i-2/18i/22i FMO display module, the intrinsically safe CHALLENGER KB and KB2D keyboards, the KMU and KMU-2D keyboard and mouse, the CHALLENGER M industrial
mouse, the CHALLENGER TB trackball, the MTD and MTD-2D mouse/trackball decoder and
the intrinsically safe PSU14i/6/543 or PSU14i/8/543 local power supply unit and the associated
CHALLENGER TCV2i transmitter. This transmitter transmits data from the PC to the
CHALLENGER terminal and is intrinsically safe. Distances of up to 600 m, 400 m and 250 m
can be covered by the 15i-2-FMO, the 18i-FMO and the 22i-FMO respectively.
The TCV2i transmitter is installed outside the potentially explosive atmosphere (in the socalled “SAFE AREA”) and connected directly to the PC. This is done using the VGA graphics
card connection for the RGB signal and the PS/2 connections for the keyboard and mouse.
All that is needed in order to ensure that the system is able to operate fault-free is an IBMcompatible PC. The PC sending the data does not require any system-specific graphics
cards or software drivers.
The display, keyboard and mouse data will be transmitted from the 19” TCV2i cartridge via a
screened twisted-pair cable to the CHALLENGER 15i-2/18i/22i-FMO display module.

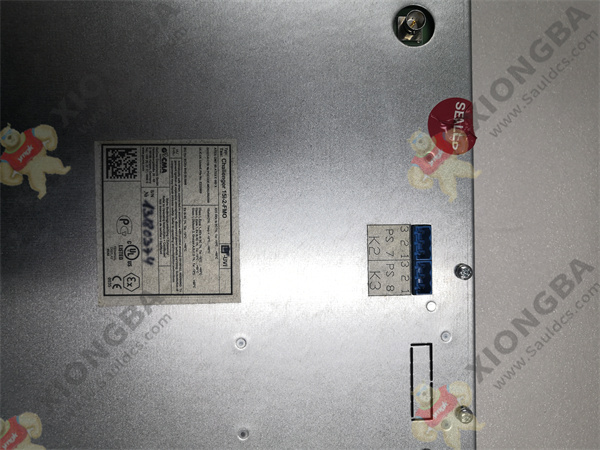

The CHALLENGER 15i-2/18i/22i-FMO display module houses the receiver electronics and the
connector blocks for the keyboard and mouse/trackball. The CHALLENGER 15i-2/18i/22iFMO display module is powered by the intrinsically safe PSU14i/6/543 or PSU14i/8/543 power
supply unit.
An RS232 device for sending data via the CHALLENGER keyboards or decoder to the TCV2i,
and from there to the PC, can be connected via the CHALLENGER KMU-2D and KB-2D
keyboards or the CHALLENGER MTD-2D decoder. The RS232 device will be powered either
using the K14/PIN1.5 power supply circuit provided for the CHALLENGER KMU-2D, KB-2D and
MTD-2D or another suitable power source.
A second pointing device (PDS) such as e.g. the CHALLENGER TB or the CHALLENGER M can
also be connected to the CHALLENGER KMU-2D, the KB-2D and the CHALLENGER MTD-2D
