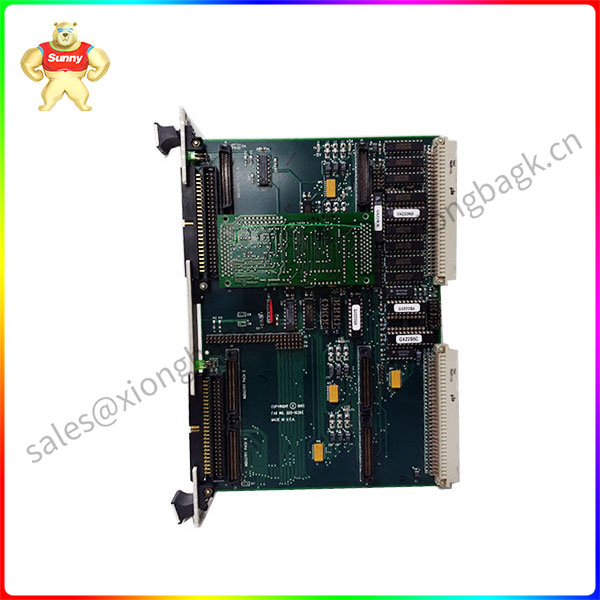

320-1026C GreenSpring Driving plate | Fresh spot

Origin: 320-1026C
Key words: 320-1026C GreenSpring Driving plate
Net weight (kg) : 0.28kg
Condition: 100% original
Warranty: 1 year
Packaging: 100% original
Delivery time: TNT, DHL, FEDEX, EMS, UPS
Time of payment: Telegraphic transfer
Delivery time: 3-5 days

320-1026C IGBT series high frequency driver board, mainly adopts SG3525A as PWM pulse formation, output pulse frequency range of 20KHZ – 60KHZ, pulse interval 180 degrees each other, dead time can be adjusted by itself. 320-1026C can be applied to frequency and power modulation of IGBT full-bridge inverter series resonant induction heating device. Power range: 10kw-120kW, the control board wiring is less, centralized control, no debugging, working power supply voltage for three AC double 18V/1A and four 22V/0.5A power supply. With over current, over voltage, but water, a variety of state indicators, and provides switching type Hall protection interface and linear Hall protection interface, a full bridge inverter IGBT drive circuit, this board can be directly assembled IGBT high frequency induction heating device.
