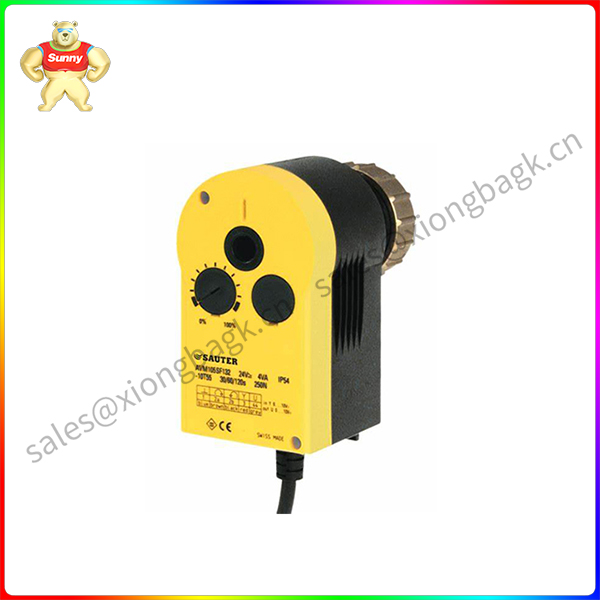

AVF234SF132 SUT valve actuator with spring return
Product Description
• Activation of 2-way and 3-way valves of the VQD/BQD, VQE/BQE, VUG/BUG, VUP, VUS/BUS and V6R/B6R series.
For controllers with switching (2- and 3-point) and continuous output (0…10 V, 4…20 mA)
• Spring return moves to end position in the event of a power failure/interruption or when a limit controller is activated
• Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic, force-dependent cut-off
• Simple assembly with valve; spindle is automatically connected after control voltage is applied (patented system)
• Automatic detection of applied control signal (constant or switched); indicated by two LEDs
• Coding switches for selecting characteristic and running time
• Type of characteristic (linear/quadratic/equal-percentage) can be set on the actuator
• Automatic adaptation to the stroke of the valve (min. valve stroke 8 mm, max. valve stroke 49 mm).
The measured stroke is saved and is not lost even in the event of a power failure
• Direction of operation can be selected via screw terminals when making the electrical connection
• Crank handle for external manual adjustment with motor cut-off and as trigger for a re-initialisation
• Numerous adaptors enable the unit to be fitted onto non-SAUTER valves
• Power supply 230 V with module or direct connection for 24 V~ or 24 V=; continuous activation also admissible with 230 V
• Maintenance-free gear unit made of sintered steel; gearbox base-plate made of steel
• Spring pack and mounting column made of stainless steel; mounting bracket made of cast light alloy for valve fitting
• Electrical connections (max. 2.5 mm²) with screw terminals
• Three pre-scored cable inlets for M20 × 1.5 (2×) and M16 × 1.5
• Fitting vertically upright to horizontal, not suspended
AVF234SF132
Product parameter
Basic information
Brand: SAUTER
Model: AVF234SF132
Technical parameter
Fluid type: Suitable for handling air flow.
Working pressure: 0.5-10 bar, suitable for application under different pressure conditions.
Caliber: G1/8, specifies the size specification of the valve.
Flow coefficient: Cv=0.3, indicating the flow capacity of the valve under specific conditions.
Voltage: 24VDC, the voltage required to power the valve.
Power: 10W, indicating the power consumption of the valve in normal working condition.
Operating temperature: -10°C to +50°C, indicating the temperature range in which the valve can work normally.
Response time: <20ms, indicating that the valve from receiving the electrical signal to the completion of the action required time is very short.
Seal class: IP65, to ensure the valve in dust and water resistance of good performance.
Application field
The AVF234SF132 solenoid valve can be used in a wide range of applications where gas flow needs to be controlled, including but not limited to:
Industrial control: Gas control for automatic production lines, mechanical equipment, etc.
Pneumatic machinery: provides stable gas on-off control for pneumatic equipment.
Medical equipment: In medical equipment, precise control of gases is achieved.
Packaging machinery: Provide stable gas control for packaging equipment to ensure packaging quality.
