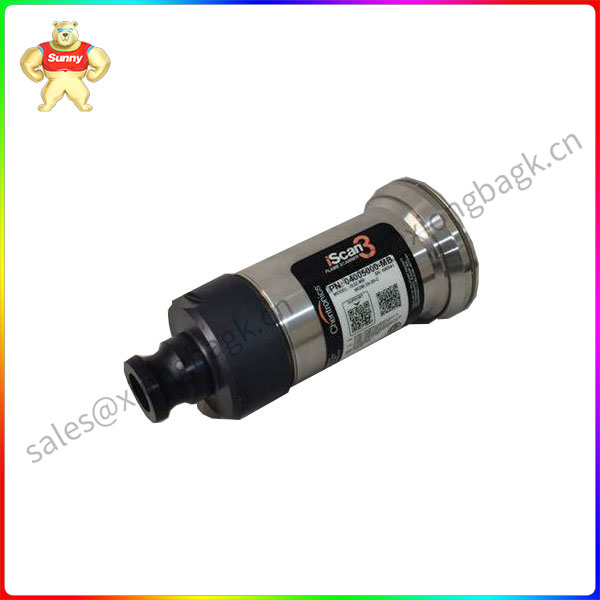

iS3Z-MB iScan3 series of flame scanners

The iS3Z-MB is a model in the iScan3 series of flame scanners manufactured by Chentronics. It is a device used in industrial process control, especially in combustion control systems to monitor the presence of flames. Here are some of the key features and parameters of the product:

Model: iS3Z-MB
Display: With a unique indicator ring, you can quickly and clearly display status information.
Design improvements: Compared to iScan2, iScan3 uses more durable materials, increases the operating temperature range by 15%, and reduces the overall size by 50% for easy installation and positioning.
Applicable fuel: Suitable for natural gas, light oil, heavy oil, biomass, hydrogen and coal and other fuel types.
Protection class: TYPE 4X, IP66.
Certification: Class 1 Division 2.
Dimensions and weight: Diameter 3.19 inches (81.0 mm), length 8.21 inches (208.5 mm), weight 2.25 pounds (1.02 kg).
Operating temperature: Ambient temperature range is -40°C to 80°C (-40°F to 176°F).
Electrical connection: Quick plug cable, length optional, suitable for hazardous and non-hazardous environments.
Output: Contains a flame relay and a configurable auxiliary relay with multiple modes.
Analog output: provides 4-20 mA output for flame intensity and 4-20 mA configurable output for internal scanner temperature or gain levels.
Communication: Supports RS485 communication and can connect up to 127 scanners.
Humidity: Can withstand 100% humidity, condensation.
Installation and operation: Detailed installation and operation manuals are provided to ensure proper use and maintenance

iS3Z-MB

Combustion control systems: Monitor flames in boilers, heaters and other combustion equipment.
Energy Industry: Ensuring the safety and efficiency of combustion processes in power plants and cogeneration facilities.
Oil and Gas: Monitor flames in oil and gas production facilities.
Chemical industry: Monitoring and controlling combustion reactions during the production of chemicals.
Biomass energy: Flame monitoring in biomass power plants.
