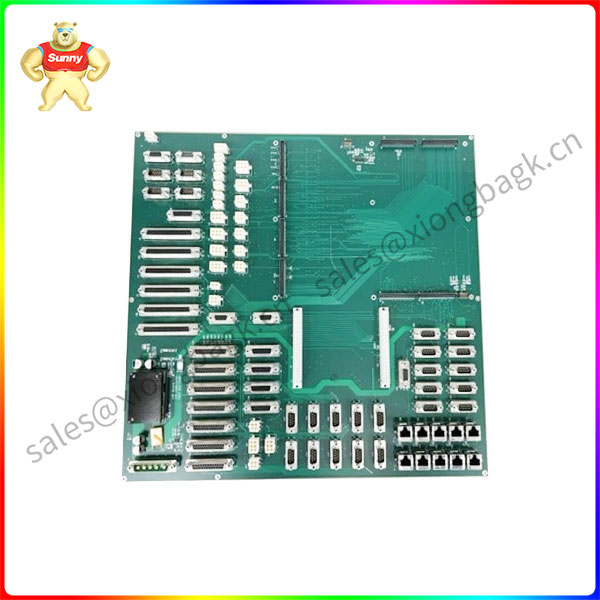

LAM Research 810-131804-004 LMC_CONN_EFEM PCB
Key words: 810-131804-004
Net weight (Kg) : 1.26Kg
Condition: 100% original
Warranty: 1 year
Packaging: 100% original
Delivery time: TNT, DHL, FEDEX, EMS, UPS
Time of payment: Telegraphic transfer
Delivery time: 3-5 days

LAM Research 810-131804-004 LMC_CONN_EFEM PCB. The following principles should be observed when determining the location of special components:
(1) Shorten the connection between high-frequency components as far as possible, and try to reduce their distribution parameters and electromagnetic interference between each other. Easily disturbed components should not be too close to each other, input and output components should be as far away as possible.
② There may be a higher potential difference between some components or wires. The distance between them should be increased to avoid accidental short circuit from discharge. Components with high voltage should be arranged as far as possible in places that are not easily touched by the hand during debugging.
(3) Components weighing more than 15 g should be fixed with a support, and then welded. Those large and heavy, heat components, should not be installed on the printed board, but should be installed on the chassis bottom, and should consider the problem of heat dissipation. The heat sensitive element should be far away from the heating element.
④ The layout of adjustable components such as potentiometer, adjustable inductor coil, variable capacitor, micro switch should consider the structural requirements of the whole machine. If the machine adjustment, should be placed above the printed board for easy to adjust the place; If the outside of the machine adjustment, its position to adjust the knob on the chassis panel position.

810-131804-004
