MVI56-PDPMV1 ProSoft PROFIBUS DPV1 Master Communication Module
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
Purchase automation parts worldwide.
Xiamen Xiongba is a search engine for industrial automatic delivery of spare parts. We help you find the parts quickly!
The key supplier to control the industrial “spare parts” business all over the world
Deliver your new parts, or parts that have been discontinued.
New parts (a wide selection of parts)
We supply high-quality parts of various brands, and you can certainly find parts that meet your automatic replacement needs.
Fast order processing (worry-free)
Do you need the automation part urgently? Our order fulfillment process is very easy, and we can quickly complete the turnover within 24 hours.
Global distribution
With the help of our established global partner network, we can provide delivery services worldwide anytime, anywhere.
| Product Type | PROFIBUS DPV1 Master communication module |
| Backplane Current Load | 800 ma @ 5V; 3 mA @ 24VDC |
| Manufacturer | Prosoft Technology |
| Compatible Platform | ControlLogix |
| Compatible Controllers | ControlLogix Processors |
| Brand | Allen-Bradley |
| Mode of operation | PROFIBUS Master |
| Compatible PROFIBUS version | Version 1 |
| No. of slave devices | 125 devices |
| No. of Ports | Two (2) ports; CFG / Debug / RS485 optically-isolated |
| Module width | Single Slot |
| Operating Shock | 30 g |
- Manufacturer : ProSoft
- Model No. : MVI56-PDPMV1
- Product type : PROFIBUS DPV1 Master Communication Module
- Backplane Current Load : 800 mA @ 5 VDC, 3 mA @ 24 VDC
- Operating Temperature : 0°C to 60°C (32°F to 140°F)
- Storage Temperature : -40°C to 85°C (-40°F to 185°F)
- Shock : 30 g operational, 50 g non-operational,Vibration: 5 g from 10 Hz to 150 Hz.
- Relative Humidity : 5% to 95% (with no condensation)
- LED Indicators : Module Status, Backplane Transfer Status, Application Status, Serial Activity and Error LED Status
- CFG Port (CFG) : RJ45 (DB-9M with supplied cable), RS-232 only, CIPConnect® Ethernet routing using 1756-ENBT, 1756-EN2T or similar

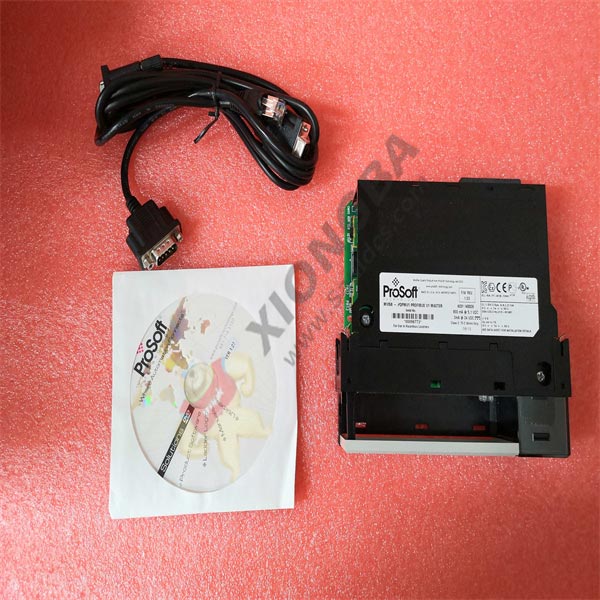

- Shipped with Unit : RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration cable
- Shipping Weight : 2 Kg
MVI56-PDPMV1
MVI56-PDPMV1
MVI56-PDPMV1
MVI56-PDPMV1
MVI56-PDPMV1
The MVI56-PDPMV1 is an ControlLogix platform compatible module. This module is a Profibus DP V1 compatible module that acts as the Master device in the Profibus network. This module is developed by Prosoft Technology, an encompass partner company of Rockwell Automation that develops Allen-Bradley PLC compatible modules.
The MVI56-PDPMV1 features One (1) RS485 port that is optically isolated, supporting PROFIBUS DP Version 1 protocol. Up to 125 PROFIBUS slave devices can be connected to this port which is also compatible with PPROFIBUS repeaters. This module has the capability of being configured up to 1536 cyclic bytes and 1536 bytes of output and supports extended diagnostic data.
Other functions supported by the MVI56-PDPMV1 include Alarm Handling, Synch and Freeze commands, Supports PROFIDrive version 3.1 parameter read and write operations, multicast and broadcast telegrams.

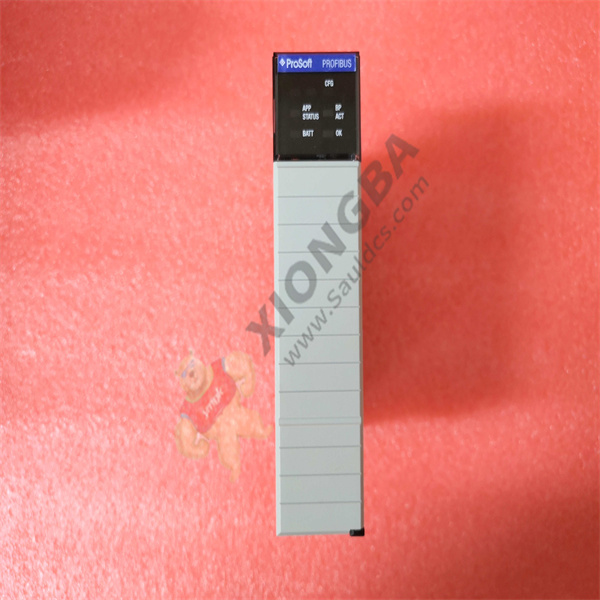

The MVI56-PDPMV1 has embedded LED status indicators for depicting the state of operation of the module. These LEDs indicators include Ready, Run, Error and Token indicators.
The MVI56-PDPMV1 PROFIBUS communication module is installed to a 1756 ControlLogix chassis. It occupies a single slot of the chassis and draws a current amounting to 800 mA @ 5VDC and 3 mA @ 24VDC from the backplane. It has an operating temperature of 0°C to 60°C (32°F to 140°F) and storage temperature of -40°C to 85°C (-40°F to 185°F). This module must be installed in an appropriate enclosure with vibration not exceeding 5 g from 10 Hz to 150 Hz and shock of 30 g with relative humidity of 5% to 95%, non-condensing.
