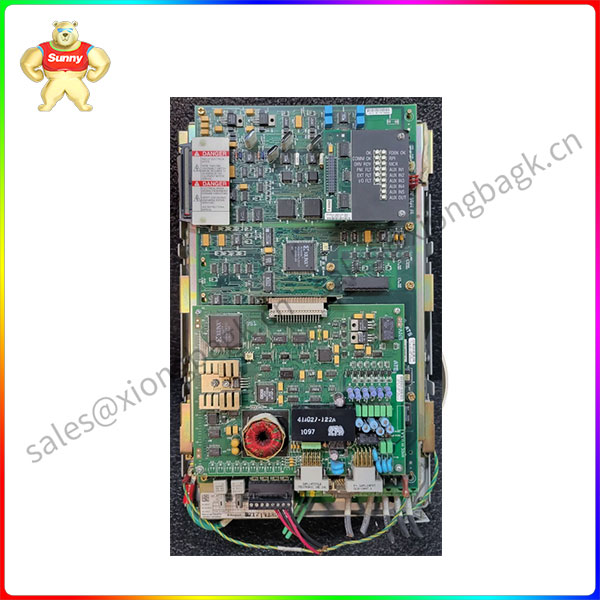

SA3100-R030-AX-L6R T491498R0 Power Management Interface

Product name: SA3100-R030-AX-L6R
Description: This product is a PMI (Power Management Interface) adjustment board for SA3100 series. The SA3100 AC power module is an inverter that works with the AutoMax Drive Performance System (DPS) to provide variable voltage and frequency.
Weight: Approximately 1.69 pounds, this is before adding transportation materials such as anti-static packaging, stuffing, internal and external boxes.
Mounting: The board is mounted by four key pins. Before installing the new board, the board holes must be aligned with these key pins before the board can be secured in place.
Power and connections: Power and all other board connectors must be disconnected before removing the previous component.
Function: Can run motor Control algorithms, establish communication with the AutoMax UDC (User Defined Control) module via fiber optic cables, and monitor drive operation. The design includes PMI interface connectors and associated processor circuits, two fiber optic ports, Flex I/O connectors, and parser and driver I/O connectors.

Add to quote
Category:

Description

SA3100-R030-AX-L6R T491498R0 Power Management Interface

Product Description

Product name: SA3100-R030-AX-L6R
Description: This product is a PMI (Power Management Interface) adjustment board for SA3100 series. The SA3100 AC power module is an inverter that works with the AutoMax Drive Performance System (DPS) to provide variable voltage and frequency.
Weight: Approximately 1.69 pounds, this is before adding transportation materials such as anti-static packaging, stuffing, internal and external boxes.
Mounting: The board is mounted by four key pins. Before installing the new board, the board holes must be aligned with these key pins before the board can be secured in place.
Power and connections: Power and all other board connectors must be disconnected before removing the previous component.
Function: Can run motor Control algorithms, establish communication with the AutoMax UDC (User Defined Control) module via fiber optic cables, and monitor drive operation. The design includes PMI interface connectors and associated processor circuits, two fiber optic ports, Flex I/O connectors, and parser and driver I/O connectors.
Meter port wiring: located in a detachable terminal block connector at the edge of the board. This terminal block connects analog devices to the board using 14-22 AWG stranded wire with a maximum wire length of 13 feet.
Additional information: More information about this board can be found in the Reliance/Baldor Reliance User Guide, product manuals and specific data sheets. Before unpacking a new part, consult the handling procedures and installation instructions to ensure safety and ensure the service life of the new part.

SA3100-R030-AX-L6R T491498R0

Product parameter

Parameter/Specification Description
The brand Allen-Bradley
Model 2362KA-BJE-45DA-14SAL6R-6TB-98-XDVB-XNRES
Drive power 30HP
Input current 52A
Input voltage 513-620V
Output current 48.2A
Output voltage range 0-460V
Output frequency range 0-400Hz
Phase number 3PH
Rated capacity 27-32KVA (input) / 38KVA (output)
State New Surplus
Location Loc 11A2
Product Description A new, unused item with no signs of wear. May be missing original packaging or could be a factory second with defects.

Application field

Manufacturing: Used to control and monitor the production process.
Automotive industry: Used to control and monitor automotive assembly lines.
Food and beverage: Used to control and monitor food and beverage processing.
Oil and gas: Used to control and monitor the drilling and production of oil and gas.
Water and wastewater treatment: Used to control and monitor water and wastewater treatment.
Mining: Used to control and monitor mining operations.
Power generation: Used to control and monitor power generation facilities.
