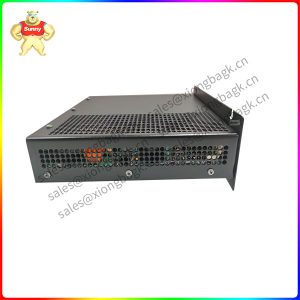

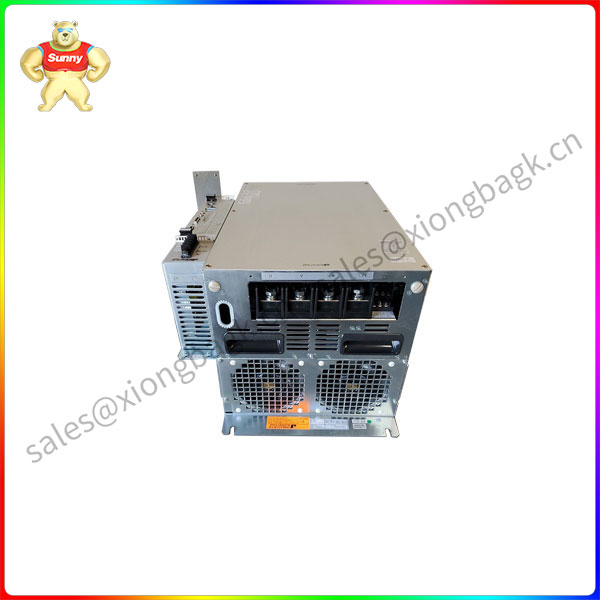

VZ7000 UVZ701E VZ7000 Digital AC Servo Drive
Product Description
VZ7000 Digital AC Servo Drive accommodates a wide range of motor capacity from 5kW to 600kW, further high-speed DSP enables frequency response 1256rad/sec or higher. The high resolution encoder improves stable operation at low speed. It adopts SERCOS, an international standard, designed for high-speed serial communication of standardized real time data with servo controllers.
Flexible Capacity
Supports 1.5kW to 600kW motor capacity.
Quick and Accurate
High-speed DSP brings out frequency response 1256rad/sec or higher. The high resolution encoder (1,000,000p/rev) improves reliable and stable operation at low speed.
High-speed Synchronous Serial Communication
SERCOS and IEC/EN61491 (Serial data link for real-time communication) are implemented as standard and enable high-speed synchronous serial communication between drive units and servo controllers.
Small and Compact
Conventional units have been downsized by 70%. The unit enables space-saving for storage and transportation through the adhesive mounting.
VZ7000 UVZ701E
Product parameter
Safe and Reliable
To reduce the hazards and lead to lower electrical accident rates, we address electrical safety design by adopting the following: protection circuit by power module, DC Bus fuse, and control power independent from the main circuit.
Independent Control Power Supply
The control power supply is configured separately from the main circuit. The user can edit parameter settings or check monitor when the main power supply is turned off.
Isolated Regulator
The regulator is isolated from all external input signals to minimize electrical noise and improve electrical safety.
Feedback Option
A variety of feedback sensors are provided from high-resolution encoder (1000000p/rev) to serial absolute encoder and incremental encoder.
Field Network
DeviceNet, CC-Link, ControllerNet
International Safety Certifications
VZ series are UL, cUL certified and CE compliant.
Application field
The VZ7000 UVZ701E is a servo drive or servo inverter from Rayon Electric in Japan, and its application fields can be summarized as follows:
Industrial Automation:
The VZ7000 UVZ701E is widely used in industrial automation, especially where high-precision control and multi-axis synchronous operation are required. It combines the knowledge and technology of the VZ3000/BL3000 series to provide the best solution in the field of servo and multi-axis simultaneous application.
High speed and high precision control:
Thanks to the adoption of high-speed DSP, the VZ7000 UVZ701E’s speed cycle number response can reach 1256rad/sec or more, achieving high-speed control. At the same time, the high resolution encoder (1,000,000P/rev) ensures stability at low speeds and meets the needs of high-precision control.
Wide range of motor capacities:
The VZ7000 UVZ701E is suitable for a wide range of motor capacities from 1.5kw to 600kw, enabling it to be used in industrial automation systems of all sizes and needs.
Communication and integration:
The product is formally equipped with standard specification (IEC/EN61491) /SERCOS communication for digital communication between digital frequency converter and NC, which is easy to integrate and communicate with other equipment and systems.
Miniaturization and space saving:
The VZ7000 UVZ701E is 70% smaller than previous products and uses a tight mounting structure, which saves a lot of space and is suitable for space-constrained applications.
Factory production automation:
Widely used in the brand of this series of industrial and production life automation equipment products, such as automated production lines, robot control systems, etc., to improve the production efficiency and product quality of the factory.
Safety and Reliability:
Before use, it is necessary to read and strictly follow the safety related information. At the same time, the product must be operated by professionals engaged in the installation, assembly or maintenance of related industrial electrical machinery and other related technologies, to ensure the safety and reliability of use.
To sum up, the VZ7000 UVZ701E has a wide range of application prospects in the field of industrial automation with its high-speed and high-precision control, extensive motor capacity adaptation, communication and integration capabilities, miniaturization and space saving, factory production automation applications, and high safety and reliability.
