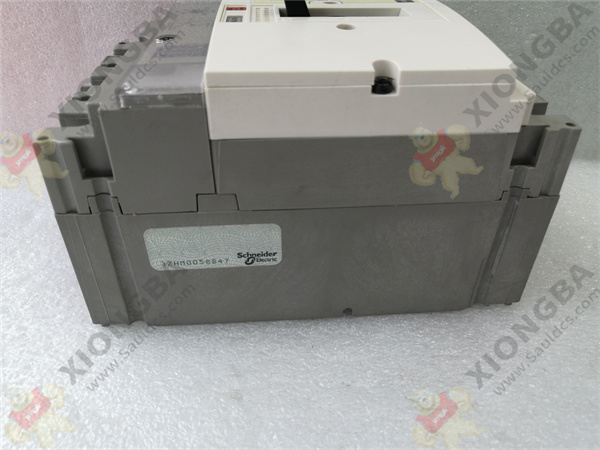

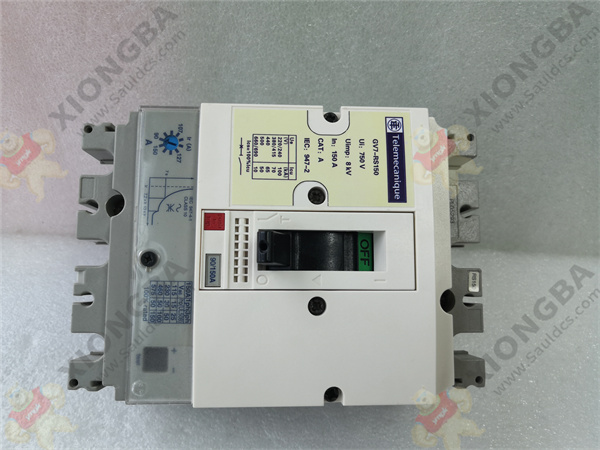

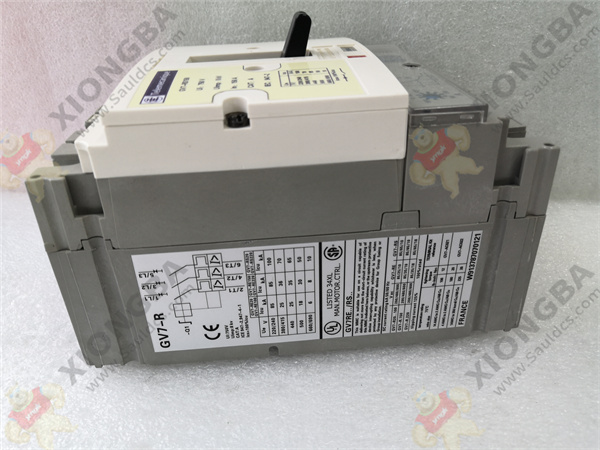

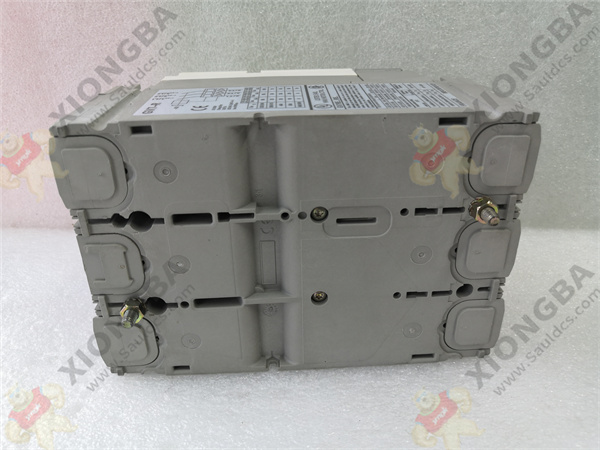

GV7-RS150 Schneider circuit breaker

GV7-RS150 Schneider circuit breaker

sales@xiongbagk.cn

Brand:Schneider
Item NO.:GV7-RS150
Order(MOQ):1
Payment:T/T
Product Origin:USA
Condition: Brand New And Original
Warranty: 1 Year
Description:circuit breaker

circuit breaker – 3P – AC-3 – 90…150 A – thermal-magnetic

Category: Tags:

Description

WSWE24-2B230 SICK Compact photoelectric sensor

Contact Us

Email: sales@xiongbagk.cn

Tel: + 86-18059884797

Whatsapp:+86-18059884797

Website: www.sauldcs.com

Address:Unit 2009, 20th Floor, 1733 Lvling Road, Siming District, Xiamen

Shipment: EMS,DHL,UPS & FEDEX

Payment: T/T

Supply Ability: 30 Unit/Units per Month

Price: The more you order ,the lower price you will get

Delivery: In stock,within 3 days send the products

GV7-RS150

GV7-RS150

GV7-RS150

GV7-RS150

Breaking Capacity Code Icu @ 415V H / 70kA
Poles Description 3P
Trip Unit Rating 48…80 A
Trip Unit Technology Thermal-Magnetic
Control Type Rocker Lever
Motor Power @400/415 v 55KW

More info

Main
range
TeSys
product name
TeSys GV7
device short name
product or component type
device application
Motor
poles description
3P
network type
AC
utilisation category
AC-3 conforming to IEC 60947-4-1
network frequency
50/60 Hz conforming to IEC 60947-4-1
breaking capacity
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
trip unit rating
90…150 A
trip unit technology
Thermal-magnetic
Complementary
mounting mode
By clips
By screws
mounting support
Flush
Panel mounting
Rail
Kit for fixing the switchgear
mounting position
Vertical
motor power kW
110 kW at 660…690 V AC 50/60 Hz
55 kW at 400…415 V AC 50/60 Hz
75 kW at 400…415 V AC 50/60 Hz
75 kW at 500 V AC 50/60 Hz
90 kW at 500 V AC 50/60 Hz
90 kW at 660…690 V AC 50/60 Hz
control type
Rocker lever
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
750 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current
150 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
power dissipation per pole
8.7 W
power dissipation
8.7 W
mechanical durability
40000 cycles
electrical durability
40000 cycles for AC-3 at 440 V In/2
20000 cycles for AC-3 at 440 V In
operating rate
25 cyc/h
rated duty
Continuous conforming to IEC 60947-4-1
connection pitch
35 mm without spreaders
45 mm with spreaders
connections – terminals
Bars
Cable with lug – external diameter : 10 mm
Bare cable connectors 1.5…95 mm²
Screw
tightening torque
10 N.m – on screw – screw M6
15 N.m – on bare cable connectors- cable 1.5…95 mm²
mechanical robustness
Shocks 15 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations 2.5 Gn, 0…25 Hz conforming to IEC 60068-2-6
suitability for isolation
Yes conforming to IEC 60947-1
phase failure sensitivity
Yes conforming to IEC 60947-4-1 § 7-2-1-5-2
height
125 mm
width
105 mm
depth
111 mm
product weight
2.02 kg
Environment
standards
EN/IEC 60947-1
EN/IEC 60947-2
EN/IEC 60947-4-1
NF C 63-120
NF C 63-650
NF C 79-130
VDE 0113
VDE 0660
product certifications
DNV
UL
protective treatment
TC
IP degree of protection
IP405 with terminal shrouds conforming to IEC 60529
pollution degree
3
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-55…95 °C
fire resistance
960 °C conforming to IEC 60695-2-1
operating altitude
2000 m
