Description
3301 TRICONEX Digital Input Module Each TMR Digital Input Module
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
| Feature | Specification | |
| 1 | Points | 32, commoned |
| 2 | Nominal input voltage | 24 VDC |
| 3 | Operational voltage range | 15–30 VDC |
| 4 | Absolute maximum input voltage | 33 VDC |
| 5 | Absolute maximum reverse input voltage | – 0.6 VDC |
| 6 | Input delay | <10 ms, On to Off or Off to On TC = 6.4 ms, –3dB @ 25Hz |
| 7 | Input impedance | >30 k:, without baseplate |3 k:, with baseplate |
| 8 | Input power | 0.2 W/pt, @ 24 VDC 0.5 W/pt, @ 33 VDC |
| 9 | Input threshold | 0–5 VDC = Off region 6–14 VDC = transition region 15–30 VDC = On region |
| 10 | Diagnostic (loss of view) | Force-to-value diagnostic (FVD), <2 ms/test |
| 11 | Maximum input toggle rate to maintain diagnostic fault coverage | <20/sec |
| 12 | FVD Off state glitch Duration Magnitude Output Impedance |
<2 ms about 36% test voltage 0–5 VDC, about 100 k: |
| 13 | ADC scan time | <1 ms for all 32 points |
| 14 | Functional earth to protective earth isolation | 500 VDC, minimum |
| 15 | Functional earth to functional earth (logic ground) isolation | 800 VDC, minimum |
| 16 | Origin Country | Made in U.S.A |
| 17 | Supplier | Aotewell |
Digital Input Module Each TMR Digital Input Module has three isolated sets of electronics, called channels, which independently process field data to the module. Each channel places the processed data in an array and transmits this array, on request, to the MP associated with that channel. The MPs vote on the data before passing it to the application. DI Modules include complete, ongoing diagnostics for each channel. If the diagnostics detect a failure on any channel, the Fault indicator turns on and activates the system alarm. The Fault indicator identifies a channel fault, not a complete module failure. The DI Module continuously verifies the ability of the system to detect transitions to the opposite state. DI Modules are guaranteed to operate properly in the presence of a single fault and may continue to operate properly with multiple faults. DI Modules support a hot-spare module. Each DI Module is mechanically keyed to prevent improper installation in a configured baseplate. The Model 3301 DI Module can be used with these baseplates: • Model 2301, which is used with typical applications. • DI External Termination Baseplate, which is used with the Solid State Relay Input External Termination Panel in high-voltage applications, or the Model 9573-610 DI Hazardous Location External Termination Panel.

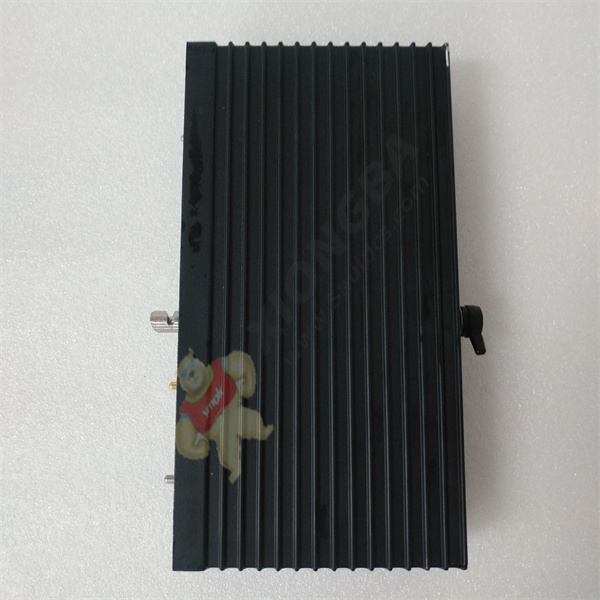

TRICONEX 3301

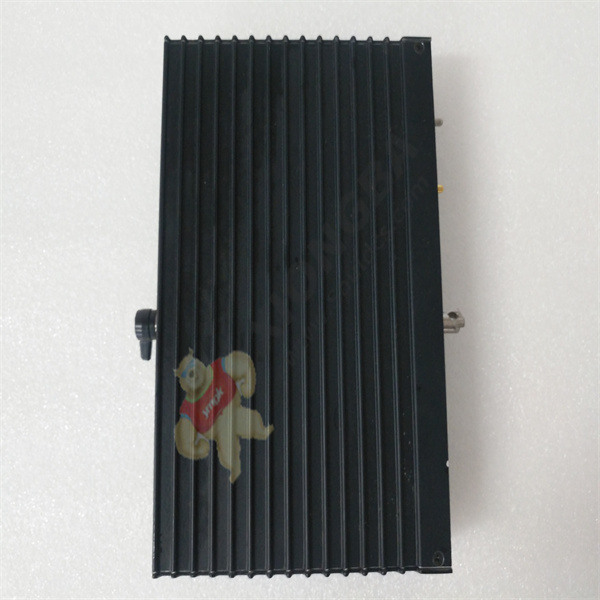

TRICONEX 3301

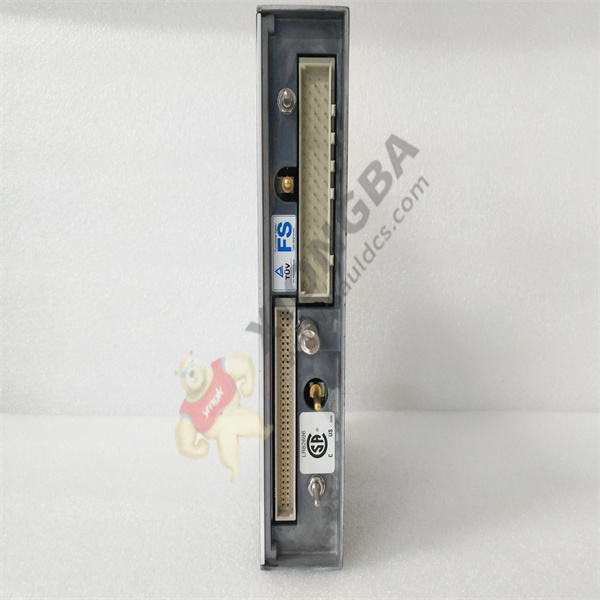

TRICONEX 3301

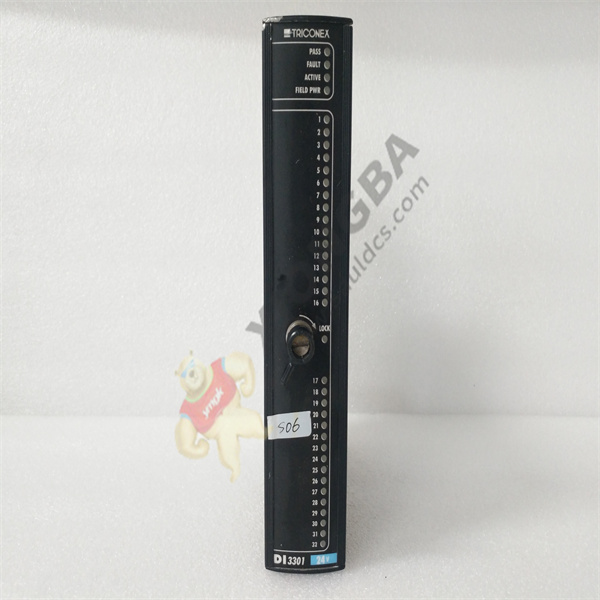

TRICONEX 3301
