Description

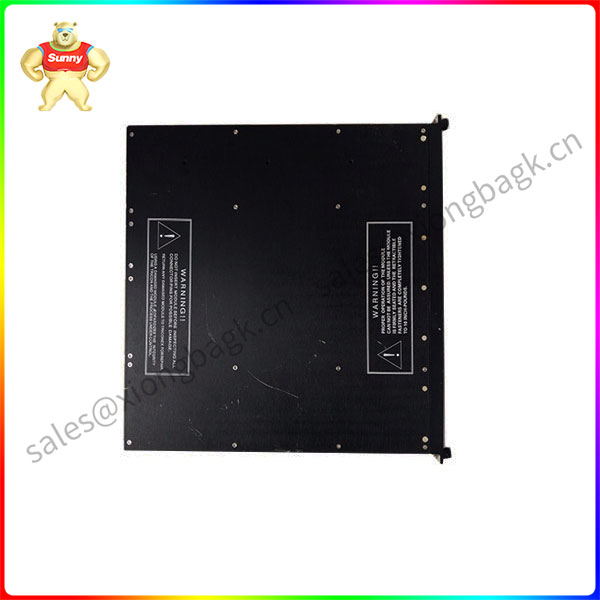

TRICON 3625 high-performance PLC module
Product Description
The TRICONEX 3625 is a high-performance PLC module for industrial control and safety systems. Here’s more about the TRICONEX 3625:
Product features:
The TRICONEX 3625 integrates the functions of digital output and analog modules to accurately control the switching state of various devices for precise industrial control.
The module can receive and collect analog signals sent by external devices or sensors, such as temperature, pressure, flow, etc., and convert them into digital signals for processing, and at the same time convert processed digital signals into analog signal output.
The TRICONEX 3625 features high precision and reliability to ensure consistent performance over long periods of operation.
The module provides a variety of input and output channels, which can process multiple analog signals at the same time, improving the flexibility and efficiency of the system.
Technical parameters:
Input voltage: 100-240V AC
Output voltage: 24V DC
Rated current: 5A
Operating temperature: -10℃ ~ +40℃
The number of the output module is 24VDC, the nominal voltage is 24 VDCTMR type, and the supervised unsupervised DO output signal is 32.
The common voltage range is 16 to 32 VDC, the maximum voltage is 36 VDC, and the voltage drop is less than 2.8 VDC (at 1.7A).
The typical value power module load is less than 13 watts, the rated current is 7A per 10ms per point, the surge maximum is 1.7A, the minimum required load is 10 mA, and the load leakage maximum is 4 mA.
Application field:
TRICONEX 3625 is widely used in the automated production process of electric power, chemical, petroleum, metallurgy, pharmaceutical and other industries, which can realize the control and monitoring of various types of equipment.
In industrial automation applications, the TRICONEX 3625 can be used to control and monitor various devices such as valves, motors, electric motors, etc.
The module also plays an important role in safety systems in the oil and gas, chemical, pharmaceutical and other industries, ensuring the safe operation of critical equipment.
Product advantages:
The TRICONEX 3625 is known for its high quality and robust performance, providing accurate and reliable digital output signals for industrial control applications.
The module offers high quality and reliable performance for harsh environments, with multiple digital output channels and good compatibility with Triconex control systems.
TRICONEX 3625 uses advanced control algorithms and digital signal processing technology, with high-speed response, precise control and other characteristics, to achieve efficient control of all types of equipment.
In summary, the TRICONEX 3625 is a powerful and stable industrial automation control module that can meet the needs of a wide range of complex industrial applications.
3625
Product parameter
The parameters of the TRICONEX 3625 can be summarized as follows:
1. Electrical parameters
Input voltage:
Range: 100-240V AC (Some references mention an input voltage of 24VDC, but this information may be application-specific or version-specific)
Output voltage:
DC output: 24V DC
Rated current:
5A (for some applications or configurations)
Rated current, 7A per 10ms per point (for output modules)
Common voltage range:
16~32 VDC
Maximum voltage:
36 VDC
Voltage drop:
Less than 2.8 VDC @ 1.7A (typical)
2. Physical parameters
Size:
4.5 “x 12.5” x 10.5 “(Length x width x height)
Weight:
4.5 pounds
3. Environmental parameters
Working temperature:
-10℃ ~ +40℃ (some materials mention -40℃~ 85℃)
Storage temperature:
-40℃ to 85℃
Humidity:
5% to 95%, no condensation
Four, output module characteristics
Output module number:
24VDC
Nominal voltage:
24 VDC TMR type
Supervised/unsupervised DO output signal:
32
Fuse (on site terminal) :
No self-protection point
Isolation:
1500 VDC
Diagnostic light:
Display module status (Passed, failed, loaded, active)
Field alarm load (1 per point)
Color code: dark blue
V. Other parameters
Rated load:
Typical value Power module load is less than 13 watts
Surge and load leakage:
The maximum surge is 1.7A
The minimum required load is 10 mA
The maximum load leakage is 4 mA
Memory and processor:
32-bit floating point processing
2mb memory (mentioned by some sources)
Application field
The TRICONEX 3625 has a wide range of applications, mainly covering a number of key industrial sectors. The following is a detailed summary of application areas:
Oil and Gas:
The TRICONEX 3625 is widely used in the industry to control a variety of safety-related equipment such as valves, motors and relays.
Its versatile and reliable characteristics make it a popular choice for the oil and gas industry.
Chemical Industry:
With the chemical industry demanding precise control and safety features, the TRICONEX 3625’s multiple digital output channels and compatibility with Triconex control systems make it an ideal choice.
The module can be used to control various equipment and systems in the chemical production process to ensure the stability and safety of production.
Power industry:
The TRICONEX 3625 also has a wide range of applications in the power industry, particularly for controlling and monitoring critical equipment during power production and distribution.
Its high precision and reliable performance ensure the stable operation of the power system, reducing failures and downtime.
Pharmaceutical and Food & Beverage Industries:
The reliable performance and ease of installation and configuration of the TRICONEX 3625 make it the ideal choice for these industries, which require strict standards of health and safety in the production process.
It can be used to control various equipment on the production line to ensure the smooth progress of the production process, while ensuring the quality and safety of the product.
Manufacturing and Transportation:
The TRICONEX 3625 can be used in the manufacturing industry in scenarios such as automated production lines and robot control to improve production efficiency and product quality.
In the field of transportation, it can be used to control key equipment such as railway signal systems and traffic management systems to ensure safe and smooth traffic.
Other industrial applications:
TRICONEX 3625 is also widely used in other industrial fields, such as metallurgy, paper, textiles, etc. In these industries, it can be used to control and monitor various equipment and systems, improve production efficiency and product quality, while ensuring safety at work.
In conclusion, the TRICONEX 3625 is an essential part of industrial automation and safety systems with its high quality, reliable performance and wide range of applications.
