9907-838 Woodward Load Sharing Module
Xiamen Xiongba Electronic Commerce Co. LTD is a World-Wide international Business Export Trade company by wholesale and Retail. We focus on Electronic & Industry Control & Network Products Area from Year
2006. Our Main Clients from North America, Europe, Middle East, South America and Asia – Countries: United States, UK, France, Spain, Mexico, Finland, Russia, Brazil, UAE, Canada, Germany, Italy, Peru, Sri lanka,
India, Thailand, Vietnam, Singapore, Malaysia.
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
Woodward Load Sharing Module Part 9907-838. This part features PWM/Caterpillar output types and 24 VDC supply voltage. Allows load sharing with Woodward and non-Woodward equipped engines and provides isochronous and droop load sharing.
| 3-Phase PT Inputs | 95-130 Vac |
| Air Quality | Pollution Degree 2 |
| Dimensions | 273.6 mm X 59.2 mm X 214.1 mm |
| Manufacturer | Woodward |
| Operation Temp | -40 – 158 F |
| Output to Speed Control | +0.5 – +4.5 Vdc analog |
| Sync Input | Compatible with Woodward SPM-A synchronizer |
This unit is classified as a part of the Woodward Load Sharing modules and designated with the numerical ID of 9907-838. The 9907-838 LSM model is designed to provide the industrial generator system it is attached to with several functionalities and adjustment capabilities. This unit is outfitted with both isochronous and droop load sharing. The Isochronous load sharing is capable of providing the generator an adjustment of the load it has, even when two or more generators are paralleled to it. The Droop load sharing is able to provide a reduction of output when both no-load and full-load conditions are implemented.
The specified full load condition is from 3 to7 ARms. The 9907-838 unit is outfitted to run on a DC power intake, the voltage ranging between 18 and 32 V/DC, minimum to maximum. The environmental specifications for this unit give it an operational temperature range between -40 to 70 degrees Celsius or -40 to 158 degrees Fahrenheit. It is able to resist a shock that rates up to 40 G, at an 11-millisecond sawtooth pulse.

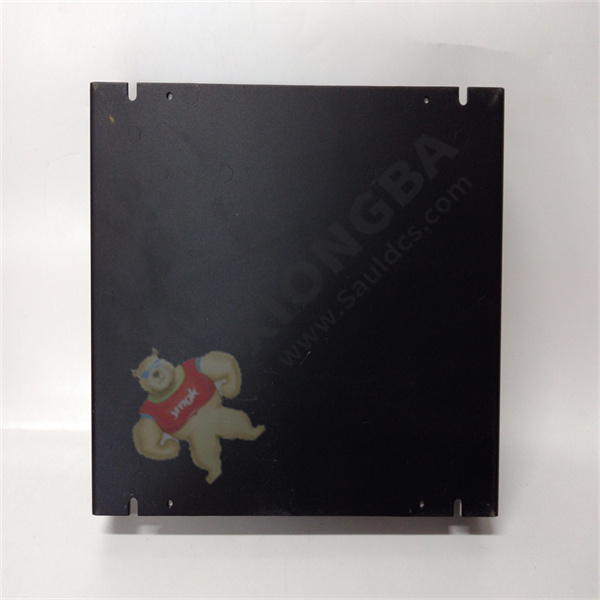

9907-838

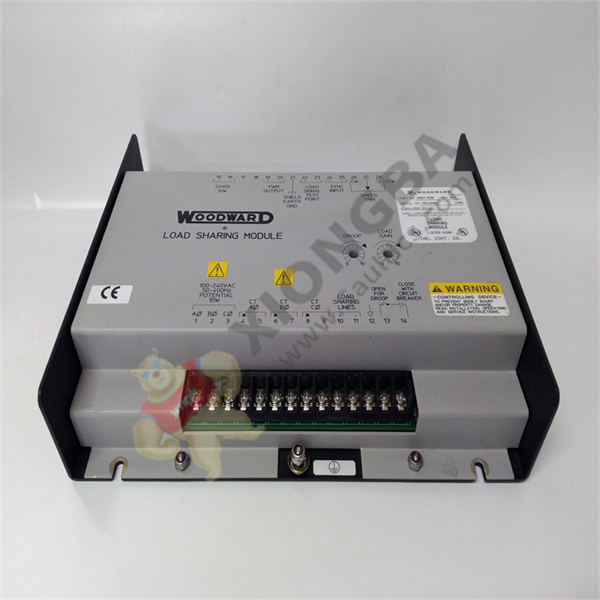

9907-838

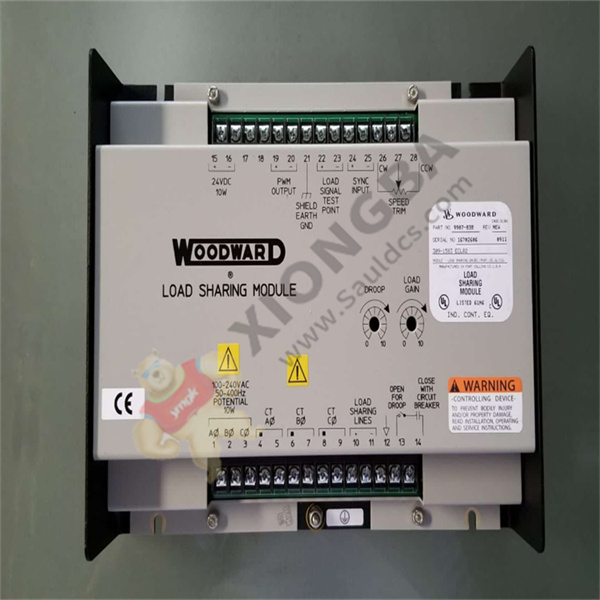

9907-838

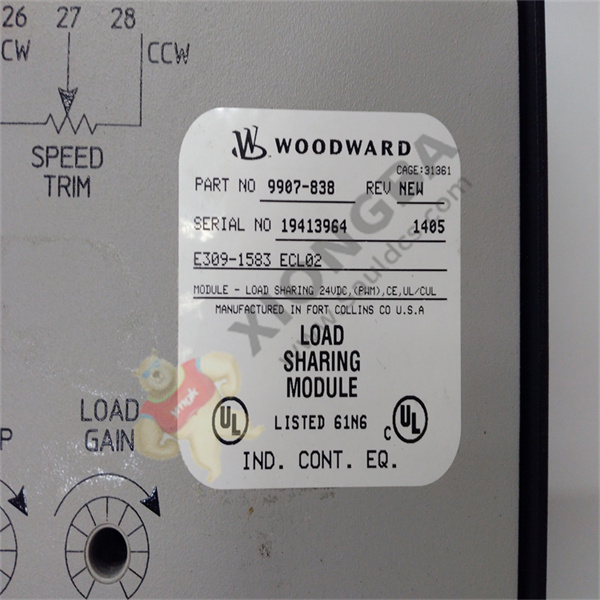

9907-838

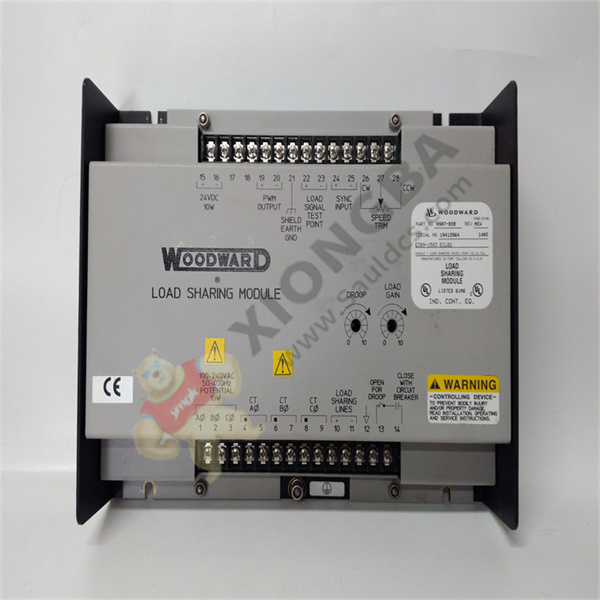

9907-838
Woodward 9907-838, Load Sharing Module, CAT PWM, 24 VDC
Engine and Turbine Control Gas Engine Control Systems:9907-175 Obsolete Replaced by 9907-838
Load Sharing Module, Pulse Width Modulated Output, Power Supply 24 VDC, Caterpillar PWM Output Surge Protection Features: • Load Sharing Module is made for use with Caterpillar engines equipped with a Caterpillar digital speed control with a pulse width modulated (PWM) input. • The Load Sharing Module allows use of Woodward power generation accessories and allows load sharing between the Caterpillar digital speed control equipped engines and engines controlled with Woodward electronic controls. • Isochronous and droop load sharing • Easy to setup • EC Compliant • UL/cUL Listed
